Low Side Windows in English Pre-Reformation Churches: Some Examples.
10


B: Independent openings: A chancel window close enough to the western end of the chancel, but too high.

The following examples illustrate low side windows which were installed independently of the other chancel windows. Although the westernmost chancel window was close enough to the western end of the chancel to meet the liturgical criteria for confession, it was deemed to high to modify, or it was easier, or cheaper to install a separate opening at a suitable height.

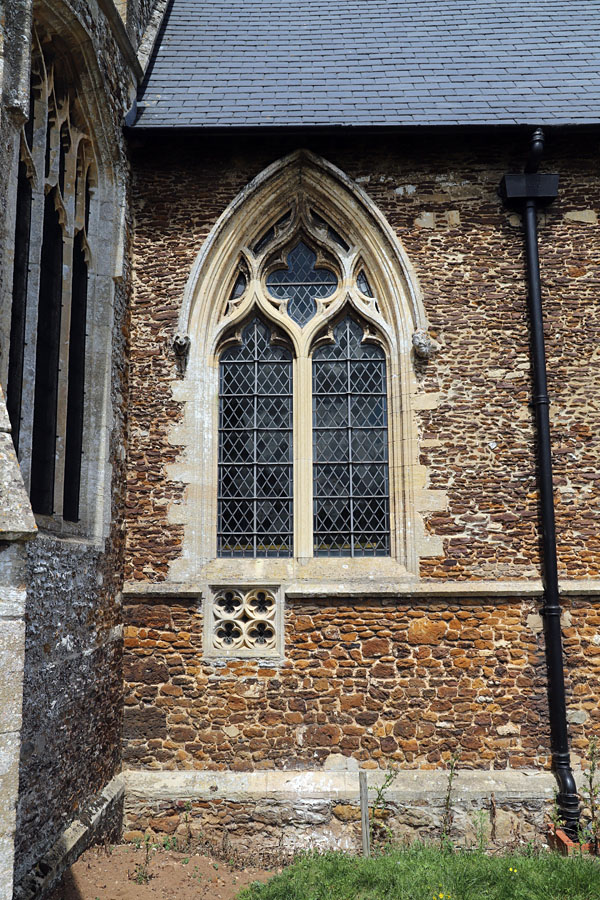

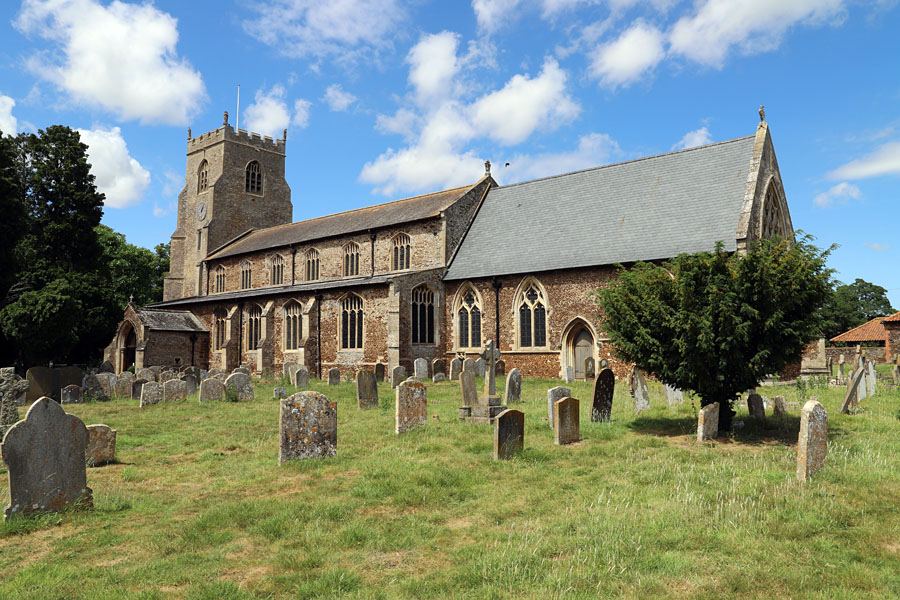

St Nicholas, Dersingham, Norfolk.

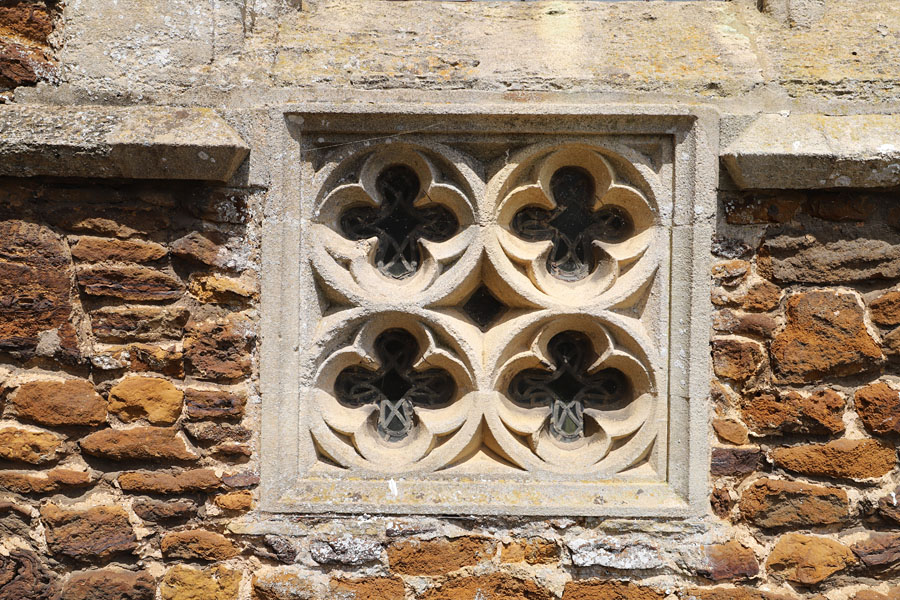

St Nicholas, Dersingham, Norfolk.

Detail of south low side window.

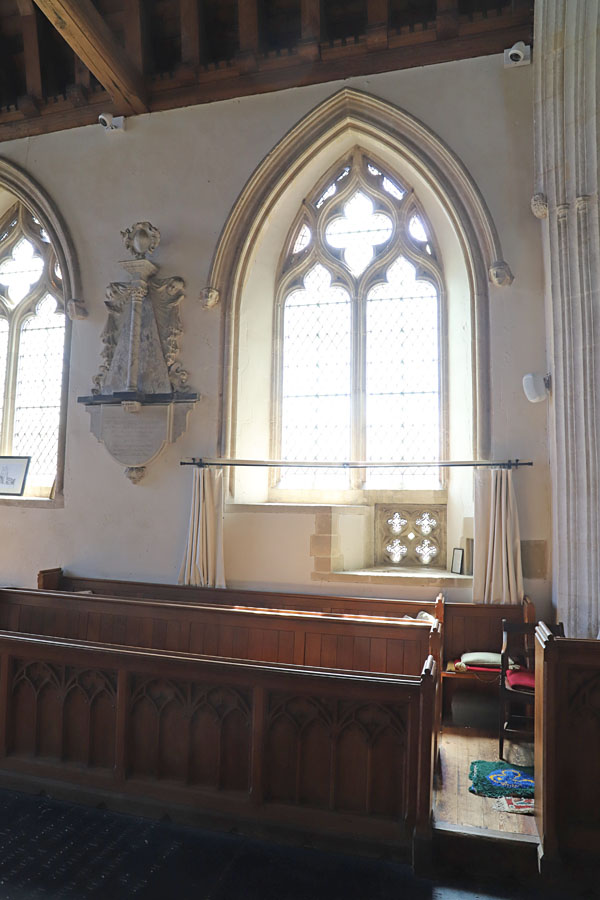

St Nicholas, Dersingham, Norfolk.

Internallly the wall under the original light has been lowered and splayed to provide a seat.

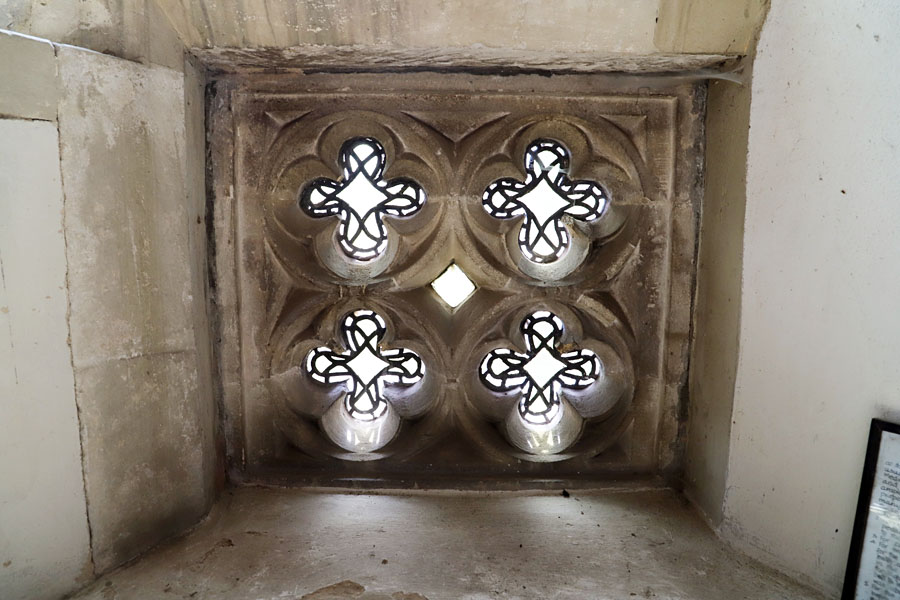

St Nicholas, Dersingham, Norfolk.

Internal detail.

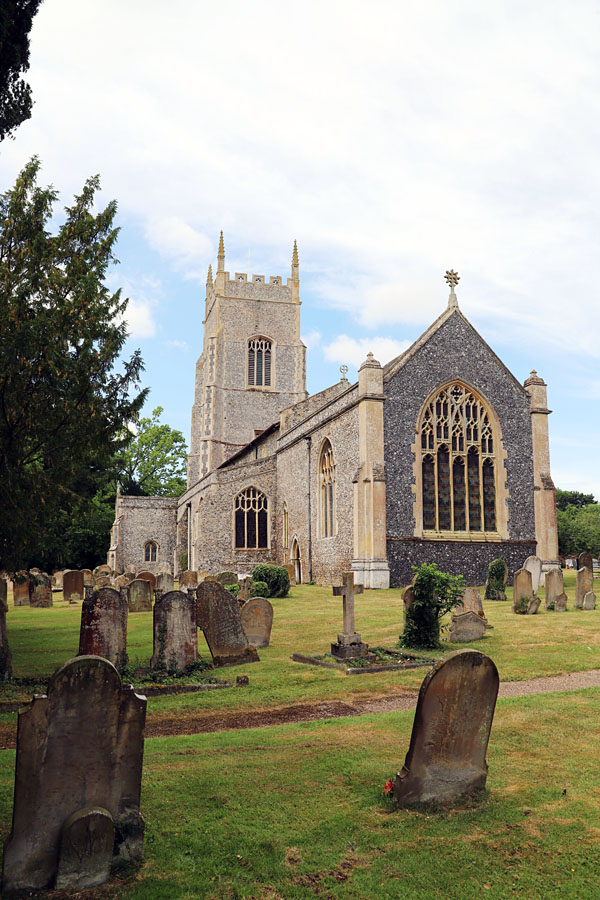

St George, Saham Toney, Norfolk.

South side of the chancel.

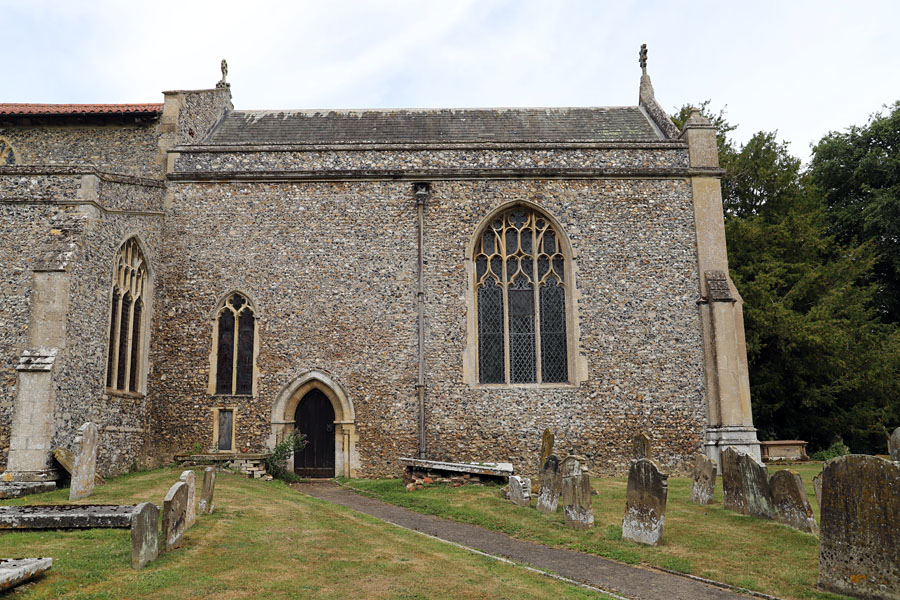

St George, Saham Toney, Norfolk.

South side of the chancel.

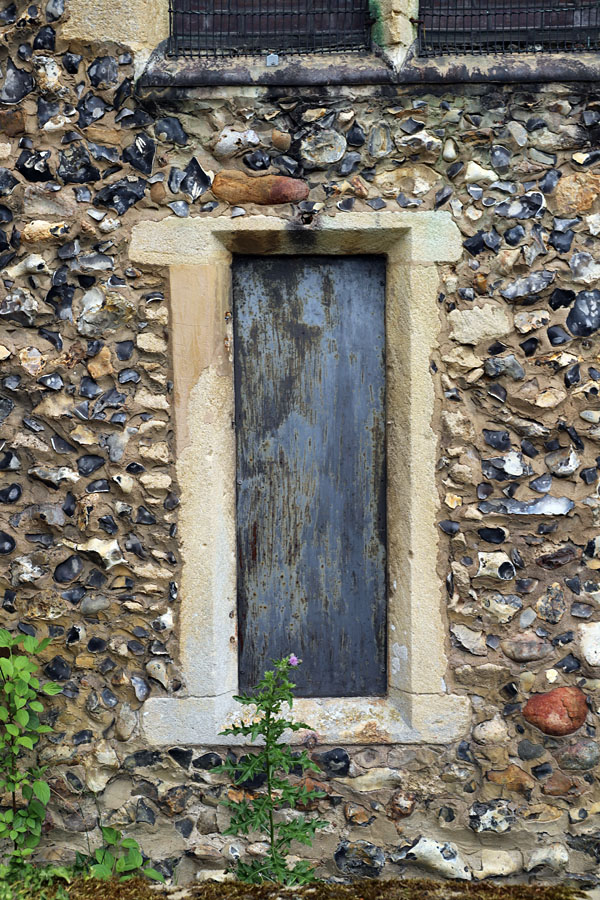

St George, Saham Toney, Norfolk.

South low side window detail.

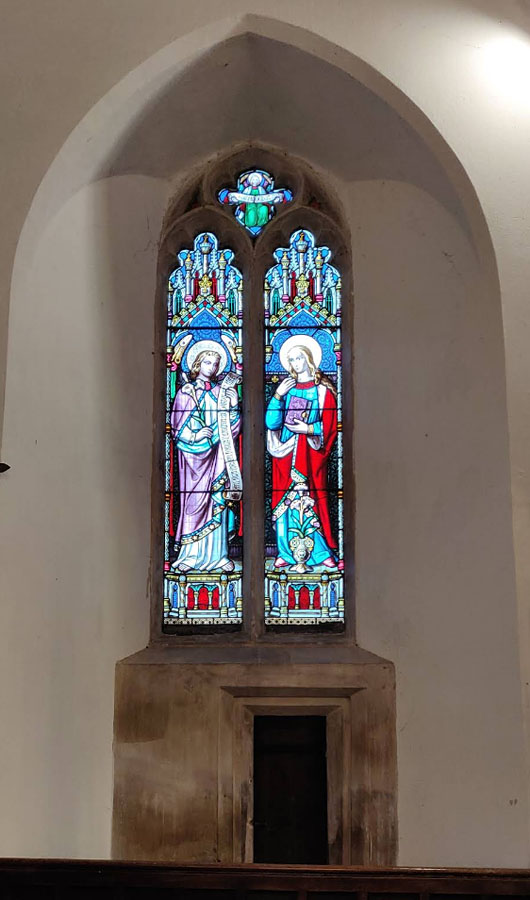

St George, Saham Toney, Norfolk.

Internal view. A wooden shutter with bolt is still in situ.

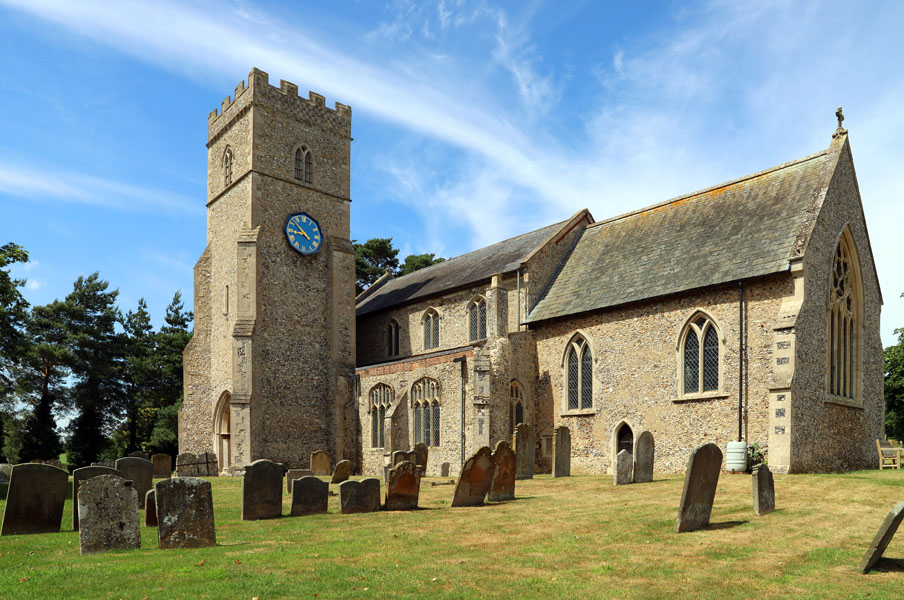

St Andrew, West Bradenham, Norfolk.

South chancel.

St Andrew, West Bradenham, Norfolk.

South chancel. Low side window in relation to the high western most window and priest's door.

St Andrew, West Bradenham, Norfolk.

South low side window detail.

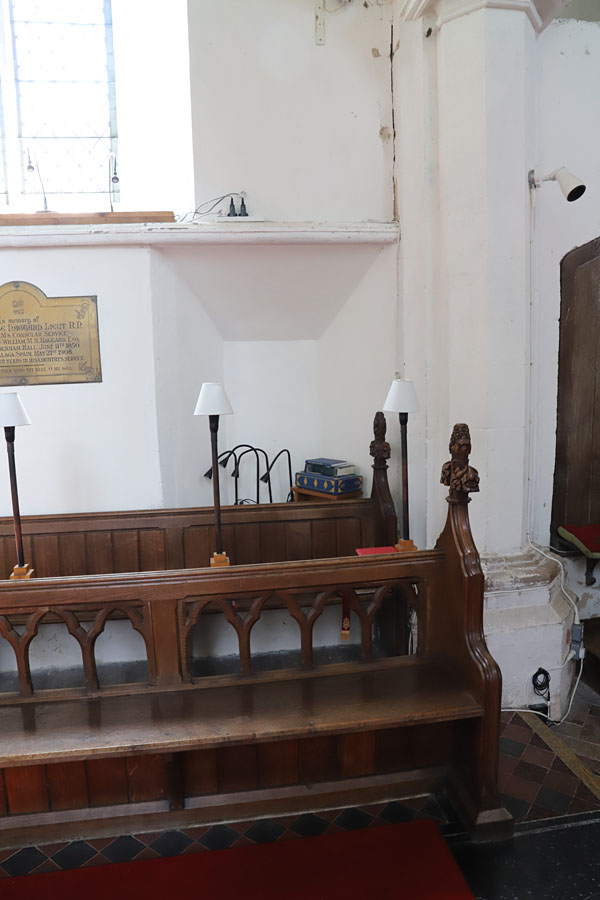

St Andrew, West Bradenham, Norfolk.

Internally the splay of the low side window (now blocked) abuts the respond of the chancel arch.

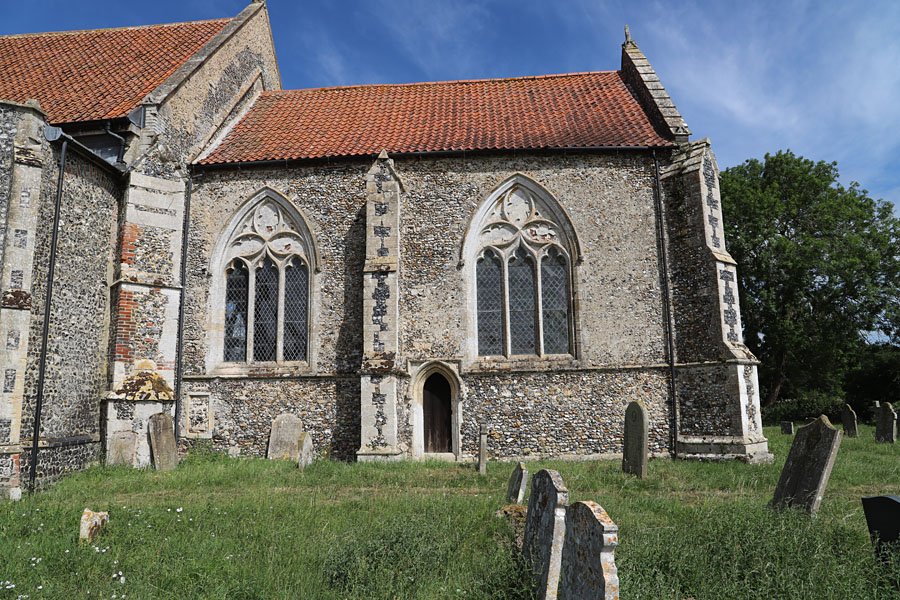

St Martin's, Thompson, Norfolk.
South side of the chancel.

St Martin's, Thompson, Norfolk.
South low side window in relation to the westernmost window.

St Martin's, Thompson, Norfolk.
South low side window detail.

St Nicholas, Ashill, Norfolk.
South chancel general view

St Nicholas, Ashill, Norfolk.

A simple rectangular low side window installed below the original early c14 window.

St Nicholas, Dersingham, Ashill.
Low side window detail.


St John the Baptist, Blisworth, Northamptonshire.

General view of the south side of the chancel. The two smaller windows are original to the c13 chancel build. The three-light Perpendicular window is later c14. The south low side window, a rather crude square opening, now blocked up, sits below this later window.


St John the Baptist, Blisworth, Northamptonshire.

South low side window in relation to the late c14 Perpendicular window above which is too high to function as a confessional window. It is highly likely that the low side window predates the Perp window, and that there was no opening west of the c13 Y-traceried window when it was installed, the latter being too far from the western end of the chancel to have fulfilled its liturgical function as a confessional, despite it being relatively low..

St John the Baptist, Blisworth, Northamptonshire.

South low side window detail. Note the scratch dial nesr the top of the western jamb (enlarged on inset in this photo), an unusual location for one, as the eastern wall of the c13 south aisle would have effectively cast a shadow it much after 1pm, the church being orientated almost exactlt east-west (the south aisle was rebuilt in 1926).1
  1. Victoria County History of Northampton, Vol 4. p225.

St John the Baptist, Blisworth, Northamptonshire.

South low side window internal detail. The south-west angle of the chancel arch once had a squint from the south chapel which communicated with the sill of the low side window. It is now blocked up. It measured 11in wide by 2ft 3in high.1
  1. Victoria County History of Northampton. Vol 4. p226 & footnote 3.

St John the Baptist, Blisworth, Northamptonshire.

General view of the north side of the chancel, with the low side window, more elaborate than its south side counterpart, and very close to the western end of the chancel. This was likely installed in the mid c14. The two three-light Perpendicular windows were probably installed much later. It is possible that this low side window was installed in the original c13 chancel prior to the c14 re-building, and may pre-date the low window on the south side. Internally the north opening is deeply splayed, particularly towards the east and is unadorned, while the south opening has a finely carved lintel. This also points to the north window pre-dating that in the south. See next slides...

St John the Baptist, Blisworth, Northamptonshire.

North low side window detail.

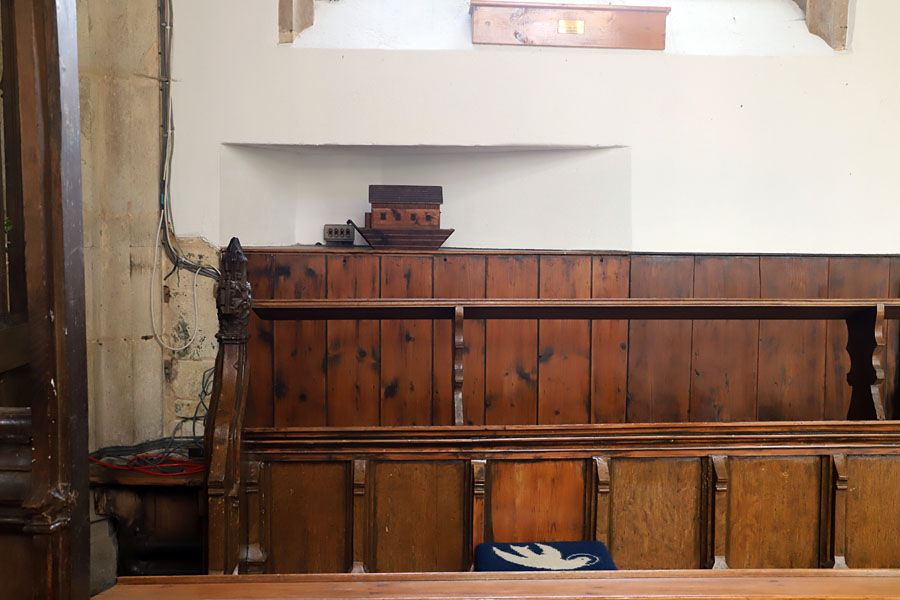

St John the Baptist, Blisworth, Northamptonshire.

Internal view of the north low side window.

St Mary's Church, Troston, Suffolk.

South chancel.

St Mary's Church, Troston, Suffolk.

South chancel. Low side window below westernmost lancet.

St Mary's Church, Troston, Suffolk.

Internally the splay of the low side window has been lowered to accommodate the shuttered opening, and provide a low seat. The original window sill has been partially retained to form a hood to the lower window.

St Mary's Church, Troston, Suffolk.

Shutter detail

St Mary's Church, Troston, Suffolk.

Shutter detail. Judging by the condition of the shutter and iron bars they are original.

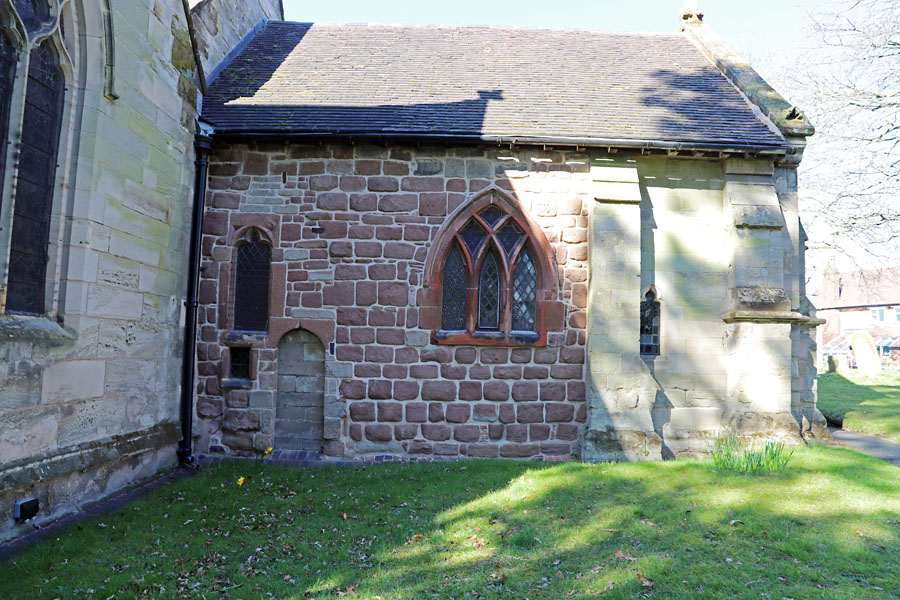

St Mary, Lillington, Warwickshire.
South wall of chancel with low side window. The chancel was extended to the east in 1884.

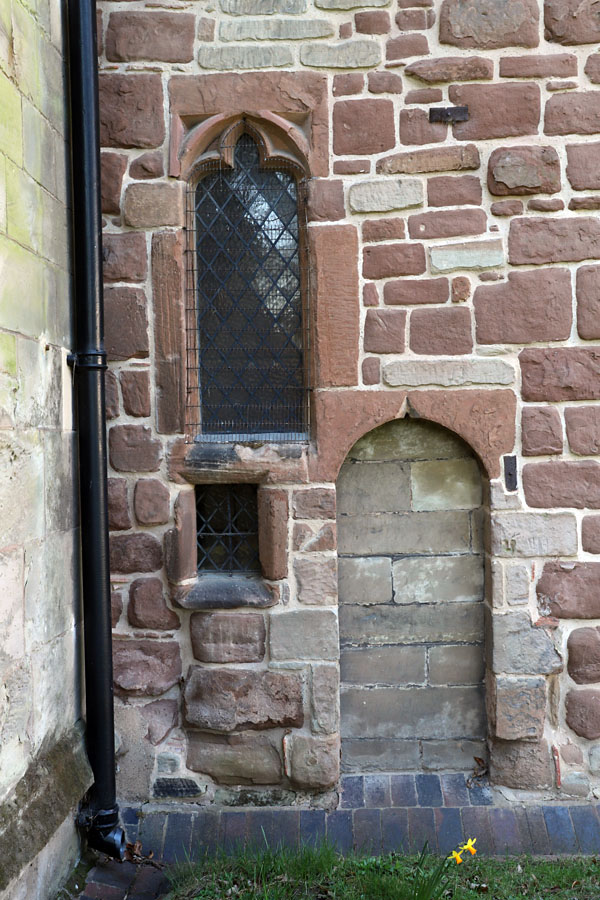

St Mary, Lillington, Warwickshire.
Low side window below the earier c13 lancet.

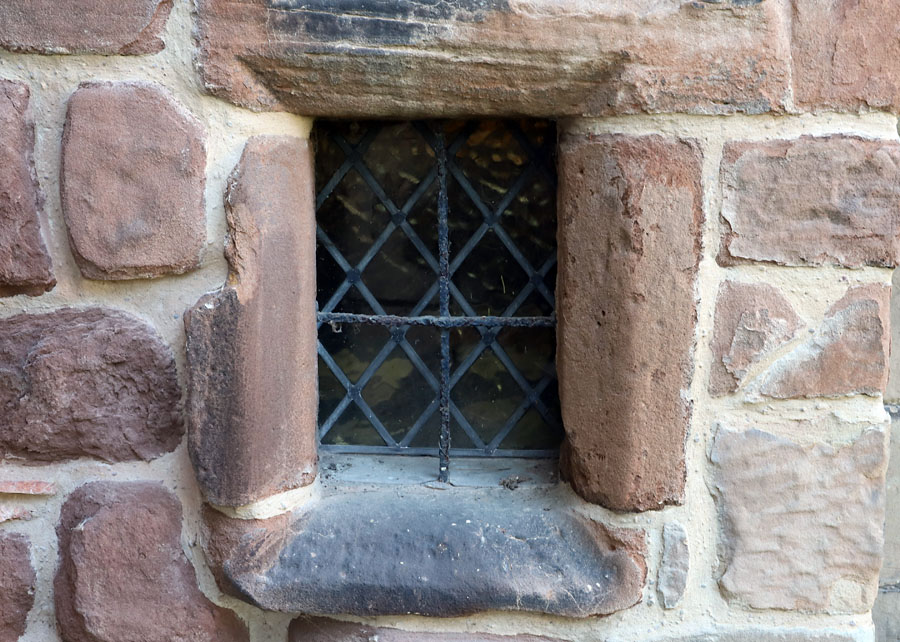

St Mary, Lillington, Warwickshire.
Detail of stonework and iron bars.



To view additional examples of this class of low side window click here.
